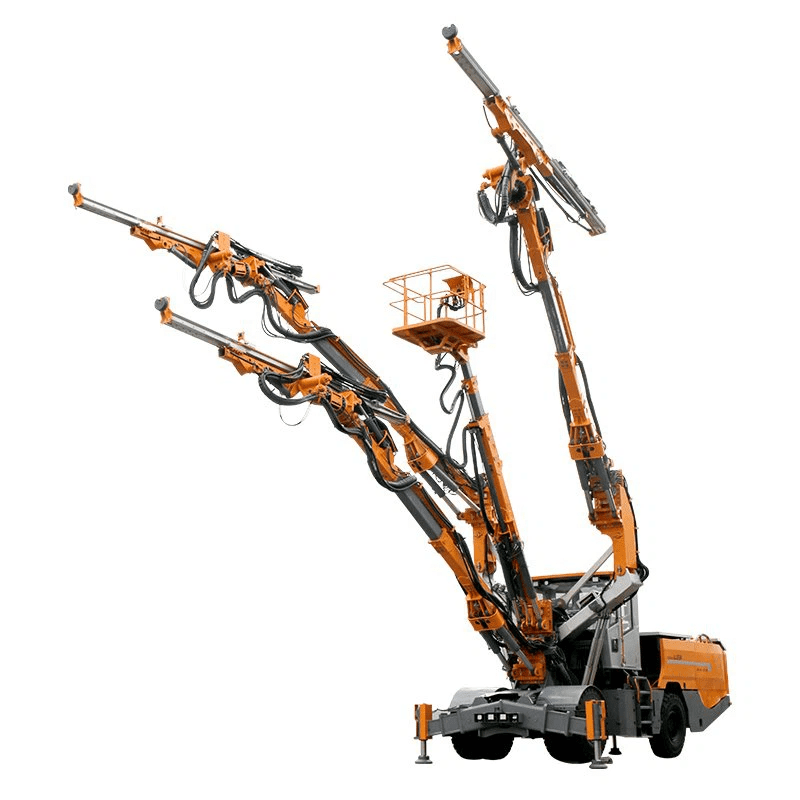

SMC-UJ33 Tunnel Rock Drill Jumbo – Next-Generation Drilling for Underground Construction
The SMC-UJ33 Tunnel Rock Drill Jumbo is a new-generation, fully hydraulic drilling solution designed to meet the demanding requirements of modern underground construction. Based on the proven design principles of widely adopted rock drilling jumbos, the UJ33 integrates advanced control systems, efficient drilling mechanisms, and robust structural engineering for reliable performance across various geological conditions.
Engineered and manufactured by SMC, this jumbo is tailored for projects involving tunnel excavation, roadway development, and underground infrastructure construction, offering high drilling precision, enhanced safety, and optimal operational efficiency.
Key Features:
Fully Hydraulic System: Provides stable and precise control of drilling operations, reducing manual intervention and enhancing safety.
Dual or Single Boom Options: Customizable configuration allows for optimized coverage and maneuverability in confined spaces.
Ergonomic Operator Cabin: Designed with visibility, comfort, and safety in mind, equipped with user-friendly controls and diagnostic systems.
Energy-Efficient Powertrain: Delivers powerful performance with reduced fuel consumption and lower emissions.
Heavy-Duty Chassis: Built for durability in rugged tunnel environments, ensuring long service life and low maintenance needs.
Technical Details
| Description | |||
|---|---|---|---|
| Hole range | 41-89mm | ||
| Hole depth | 4,050/4,660/5,270/5,880mm | ||
| Drill Rod Size | (R32, R38,T38) 4,310/4,920/5,525/6,135 | ||
| Drifter Model | ZY104M | ||
| Impact Power | 20 kW | ||
| Impact Frequency | 60Hz | ||
| Working Pressure | 7bar | ||
| Rated Capacity FAD | 1m3/min | ||
| Diesel Engine Model China II Diesel engine | Cummins QSC8.3-C240-Ⅲ | ||
| Rated Power | 179 kW (243HP) | ||
| Rotation Speed | 2200rpm/min | ||
| Fuel tank volume (L) | 150L | ||
| Electric Motor Rated Power | 3*55kW | ||
| Rotation Rate | 1475 | ||
| Voltage | 380/440/550/660/1000V | ||
| Feed Total Length | 7,996mm | ||
| Feeding Length | 5,880mm | ||
| Extension Length | 1,800mm | ||
| Reel Cable Length | 100m | ||
| Turning Radius ( inner / outer ) | R6,500mm/R12,100mm | ||
| Water System Flow Rate | 300L/min | ||
| Working pressure | 17bar | ||
| Min. water inlet pressure | 2bar | ||
| Tramming Speed | 17/10/5km/h | ||
| Gradeability | 15° | ||
| Articulated Steering Angle | ±8° | ||
| Chassis type | Rigid rear axle steering | ||
| Steering Angle (°) | +38º/-50 º | ||
| Ground clearance | 396mm | ||
| Parallel Move Mechanism | Completely | ||
| Hydraulic Jacks | 4pcs | ||
| Boom extension | 1600mm | ||
| Boom swing angle L/R | ±45° | ||
| Feed lifting angle | +68°/-45° | ||
| Feed tilt angle | +3°/-90° | ||
| Feed roll-over | 360°(auger-type) | ||
| Boom extension | 5000mm | ||
| Boom swing angle L/R | ±45° | ||
| Feed lifting angle | +60°/-35° | ||
| Rated loaded | 400kg | ||
| Hydraulic pump type | Variable pump | ||
| Hydraulic tank volume (L) | 755L | ||
| Dimension (L*W*H-roof up/down) | 17,092×2,930×3,159 /3,859mm | ||
| Jumbo Weight | 50,000kg | ||
| Drilling Coverage Area | 16×13m | ||
| Face Drilling range | 180m2 |
