Description

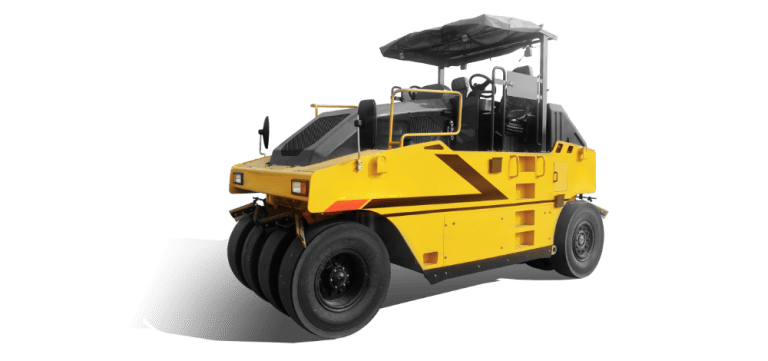

Strong Mac Tyre Road Rollers, including the SRT30H-C6, SRT26H-C6, and SRT20H-B6F, are engineered for high-quality compaction of a wide range of materials such as lime-ash soil, stabilized soil, and asphalt. These rollers feature hydraulic drive systems for smooth starts and stops, swaying front wheels for even pressure distribution, and a four-stage braking system for safe, reliable operation. Their ergonomically integrated controls ensure comfortable use, while smart maintenance-friendly designs—like outward lubrication points and easy-access components—make upkeep simple. Designed to perform equally well in plains or hilly terrains, these pneumatic tyre rollers are ideal for road construction, base layer work, and municipal engineering projects.
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-CE-SRT30H-C6 | SMC-CE-SRT26H-C6 | SMC-CE-SRT20H-B6F |
| External dimensions(mm) | 4920*2895*3410 | 4920*2895*3410 | 4920*2332*3428 |
| Engine brand | Weichai | Weichai | Shangchai |
| Power/speed(kW/rpm) | 147/2000 | 147/2000 | 103/2000 |
| Operating weight(kg) | 30000 | 26000 | 20000 |
| Minimum Operating Mass(kg) | 16450 | 16450 | 10700 |
| Volume of Water Tank(L) | 630 | 630 | 630 |
| Minimum turning radius(mm) | 8800 | 8800 | 7575 |
| Compaction width(mm) | 2750 | 2750 | 2250 |
| Pressure to the ground(KPa) | 200-460 | 200-420 | 200-400 |
| Gradeability | 0.22 | 0.22 | 0.23 |
| Speed(km/h) | 0-6，0-13 | 0-6，0-13 | 0-7，0-14 |
| Emissions (Indicated as per China standards) | Eu stage IIIA | Eu stage IIIA | Eu stage II |
