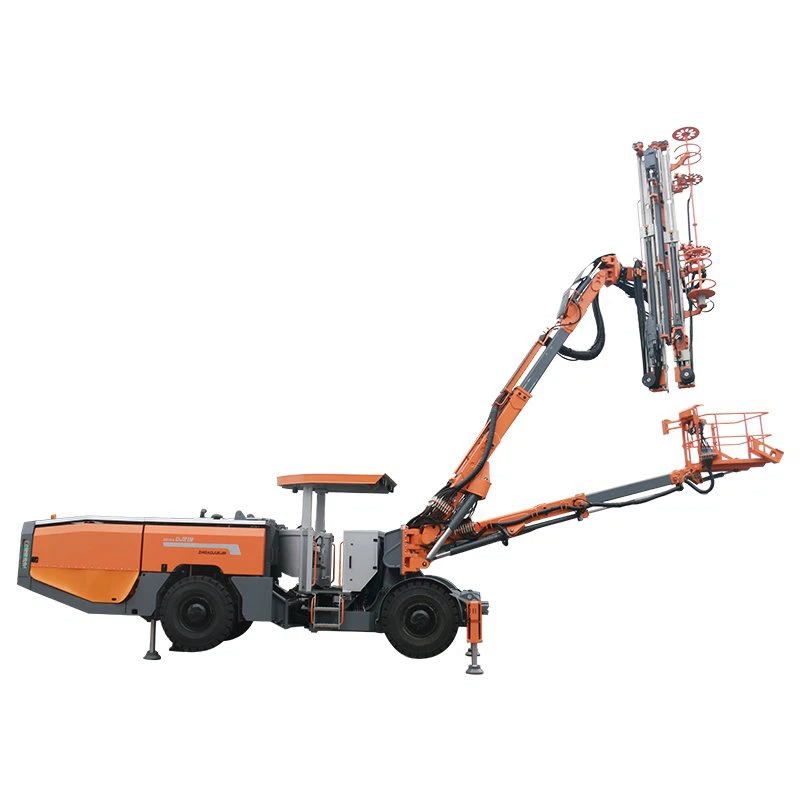

The Underground Bolting Rock Drilling Rig SMC-TE-UJ21C Jumbo stands out for its revolutionary design, developed using advanced technology from world-renowned manufacturers and produced under strict quality control standards, ensuring high reliability and performance in underground drilling operations. Meanwhile, the SMC-TE-UJ21M features double booms—one dedicated to production and the other for service—along with an integrated platform positioning assistance system, enhancing operational efficiency and flexibility in complex underground environments.
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-TE- UJ21C | ||
| Hole range | 41-102mm | ||
| Hole depth | 5,270mm | ||
| Drill Rod Size | T38-H35-R32*5,525 | ||
| Face Drilling Work Size (W x H) | 11.9×9.5m | ||
| Anchor Work Size (W x H) | 19.3×13.2m | ||
| Drilling/Anchor Coverage Area | Face drilling 96m2/Anchor 116m2 | ||
| Turning Radius ( inner / outer ) | R2,900mm/R4,800mm | ||
| Dimension (L*W*H-roof up/down) | 15,294×2,300×3,147mm | ||
| Weight | ≤18,000Kg | ||
| Drifter Model | TE104M | ||
| Impact Power | 20 kW | ||
| Max. Torque | 680N.m | ||
| Impact Frequency | 60Hz | ||
| Rotation Speed | 0-340rpm | ||
| Weight | 170Kg | ||
| Air Compressor Model / Working pressure | Twin screws | ||
| Working Pressure | 7bar | ||
| Rated Capacity FAD | 0.3m3/min | ||
| Diesel Engine Model China II Diesel engine | Cummins 6BT5.9-C130 | ||
| Rated Power | 97 kW (130 HP) | ||
| Rotation Speed | 2200rpm/min | ||
| Electric Motor Rated Power | 55kW | ||
| Voltage | 380V | ||
| Reel Cable Length | 80m | ||
| Feed Total Length | 7,244mm | ||
| Feeding Length | 5,270mm | ||
| Extension Length | 1800mm | ||
| Tramming Speed | Front36/24/12/7km/h; Rear 28/8.5km/h | ||
| Gradeability | 18° | ||
| Articulated Steering Angle / Rear axle swing | ±8° | ||
| Hydraulic Jacks | 4pcs | ||
| Fuel tank volume / capacity | 140L | ||
| Ground clearance | 300mm | ||
| Parallel holding | Complete | ||
| Boom extension | 1,600mm | ||
| Boom swing angle L/R | ±45° | ||
| Boom lifting angle / Boom up / down angle | +68°/-45° | ||
| Feed tilt angle | +3°/-90° | ||
| Feed roll-over | 360°(auger-type) | ||
| Water System Flow Rate | 66m3 /h | ||
| Working pressure | 12bar | ||
| Min. water inlet pressure | 2bar | ||
| Bolt Length (mm) | Nil | ||
| Percussion power | Nil | ||
| Percussion rate | Nil | ||
| Rated FAD | Nil | ||
| Working RPM | Nil | ||
| Drill rod feed Overall length | Nil | ||
| Travel length | Nil | ||
| Bolt carousel capacity | Nil | ||
| Cement grouting feed Overall length | Nil | ||
| Service platform Boom extension length | Nil | ||
| Service platform Boom swing angle L/R | Nil | ||
| Service platform Rated load capacity | Nil | ||
| Grouting pressure | Nil | ||
| Grouting flow rate | Nil | ||
| Cement mixer capacity | Nil | ||
| Water hose reel capacity | Nil | ||
| Electrical cable reel capacity | Nil | ||
| Bolting coverage ( WxH ) | Nil | ||
| Working face coverage area | Nil | ||
| Service platform coverage (W x H) | Nil |
