Description

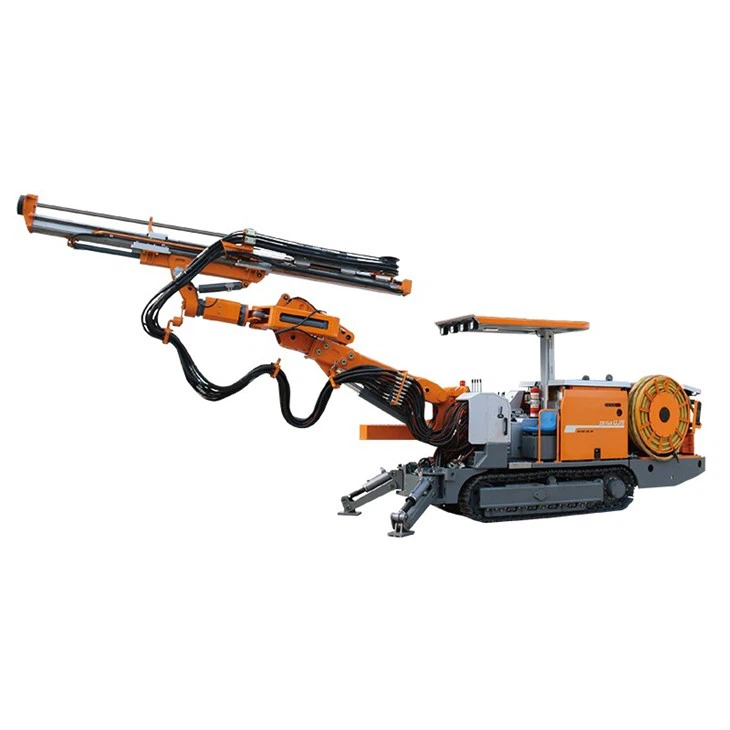

Our range of face drilling rigs offers specialized solutions for various excavation needs. We provide equipment designed for small roadway drilling, featuring robust cross-country capability and excellent site adaptability.
For larger-scale operations, our tunneling and mining drill jumbos are engineered for optimal drilling efficiency, trafficability, and stability. These advanced machines boast optimized component layouts on a patented self-balancing chassis, incorporating a rear axle swing frame for enhanced performance across diverse application conditions.
With two decades of global tunneling project experience, we leverage cutting-edge technology to deliver the best solutions for your specific applications. Our dedicated research and development ensures we remain a leader in the tunneling equipment industry.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-DTH-UJ19 (Rang Face) | ||
| Hole range | 41-102mm | ||
| Hole depth | 2,790mm | ||
| Drill Rod Size | T38-H35-R32*3,050mm | ||
| Face Size (W x H) | 5,968 x 4,936mm | ||
| Drilling Coverage Area | 28m2 | ||
| Turning Radius ( inner / outer ) | R2,535mm/R4,800mm | ||
| Dimension (L*W*H-roof up/down) | 9,900×1,240×1,990/2,690mm | ||
| Weight | ≤11.500Kg | ||
| Drifter Model | ZY103 | ||
| Impact Power | 15 kW | ||
| Max. Torque | 752N.m | ||
| Impact Frequency | 40-60Hz | ||
| Rotation Speed | 0-300rpm | ||
| Weight | 150Kg | ||
| Air Compressor Model | Twin screws | ||
| Working Pressure | 7bar | ||
| Rated Capacity FAD | 0.3m3/min | ||
| Diesel Engine Model | CumminsQSB3.9-C100-Ⅲ | ||
| Rated Power | 75 kW (100 HP) | ||
| Rotation Speed | 2200rpm/min | ||
| Electric Motor Rated Power | 45kW | ||
| Voltage | 380V | ||
| Reel Cable Length | 70m | ||
| Feed Total Length | 4,835mm | ||
| Feeding Length | 2,790mm | ||
| Extension Length | 1,600mm | ||
| Tramming Speed | 3.6 / 2.3km / h | ||
| Tramming Type | Crawler travel | ||
| Gradeability | 25° | ||
| Articulated Steering Angle | ±35° | ||
| Tramming Brake | |||
| Hydraulic Jacks | 4pcs | ||
| Fuel tank volume | 60L | ||
| Ground clearance | 280mm | ||
| Parallel holding | Complete | ||
| Boom extension | 1,000mm | ||
| Boom swing angle L/R | ±35° | ||
| Boom lifting angle | +43°/-20° | ||
| Feed tilt angle | +25°/-48° | ||
| Feed roll-over | 360°(auger-type) | ||
| Water System Flow Rate | 66L/min | ||
| Working pressure | 12bar | ||
| Min. water inlet pressure | 2bar |
