Description

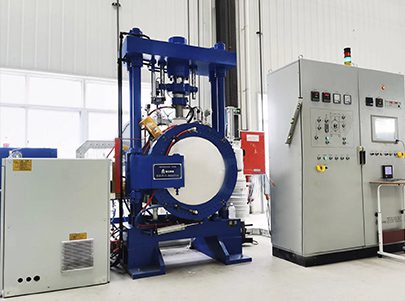

he ACME Vacuum Diffusion Welding Furnace is a high-performance solution built to meet VDP standards, specifically designed for precision brazing and diffusion welding applications. Widely used in advanced aerospace, marine, and other high-tech industries, this furnace is essential for producing complex components, including turbine blades, missile fuses, and falcon heads.
Utilizing advanced vacuum technology, the ACME furnace creates a controlled, clean environment that enables metals to bond at the molecular level—without melting—ensuring seamless, high-strength joints. This process is ideal for a broad spectrum of materials, including various metals, ceramics, and select non-metallic materials, making it a versatile solution for highly demanding manufacturing requirements.
Key Features:
Vacuum Technology: Maintains a clean, controlled atmosphere for optimal bonding
Precision Engineering: Delivers high-quality, durable joints for mission-critical components
Versatile Material Compatibility: Works with metals, ceramics, and selected non-metal materials
Ideal for Aerospace & Marine: Perfect for applications requiring high-strength and heat-resistant materials
High Reliability & Accuracy: Built to ensure consistency and top-tier performance in critical applications
Whether you’re in aerospace, defense, or any industry requiring high-precision welding, the ACME Vacuum Diffusion Welding Furnace guarantees reliability, performance, and the production of components that adhere to the highest standards of quality and durability.
Technical Details
| Description | |||
|---|---|---|---|
| Parameter/Model | SMC-VDP-444 | SMC-VDP-445 | SMC-VDP-446 |
| Heating Power (kW) | Determine the power value based on the maximum temperature of the ordered equipment | ||
| Max. temperature (°C) | 1300/1700/2300 | 1300/1700/2300 | 1300/1700/2300 |
| Loading pressure (T) | 30-200 | 30-200 | 30-200 |
| Temperature Uniformity (°C) | ±5 | ±5 | ±5 |
| Vacuum degree (Pa) | 4×10-3/6×10-4 | 4×10-3/6×10-4 | 4×10-3/6×10-4 |
| Pressure Increasing Rate (Pa/h) | ≤0.26 | ≤0.26 | ≤0.26 |
| ≤0.65 | ≤0.65 | ≤0.65 | |
| Quantity pressing plate | Single/Double | Single/Double | Single/Double |
