Description

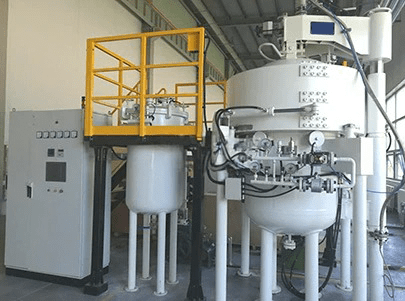

The Vacuum Pressure Infiltration / Melting Infiltration Furnace is specifically engineered for the infiltration of composite materials under controlled vacuum and pressure environments. This furnace supports two processing modes—low-temperature infiltration for delicate composites and high-temperature melting infiltration for robust metal-matrix or ceramic composites. It ensures uniform material penetration, improved bonding, and high structural integrity of final products. Ideal for advanced material development in sectors such as aerospace, defense, and electronics, this system offers reliable, repeatable performance in demanding production environments.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-HTE-0305 | SMC-HTE-0608 | SMC-HTE-1015 |
| Working Zone Size (W × H × L) (mm) | φ300×500 | φ600×800 | φ1000×1500 |
| Max. Temperature (°C) | 400 | 400 | 400 |
| Temperature Uniformity (°C) | ±5 | ±7.5 | ±10 |
| Ultimate Vacuum (Pa) | 1-100 | 1-100 | 1-100 |
| Pressure Increase Rate (Pa/h) | 0.67 | 0.67 | 0.67 |
