Description

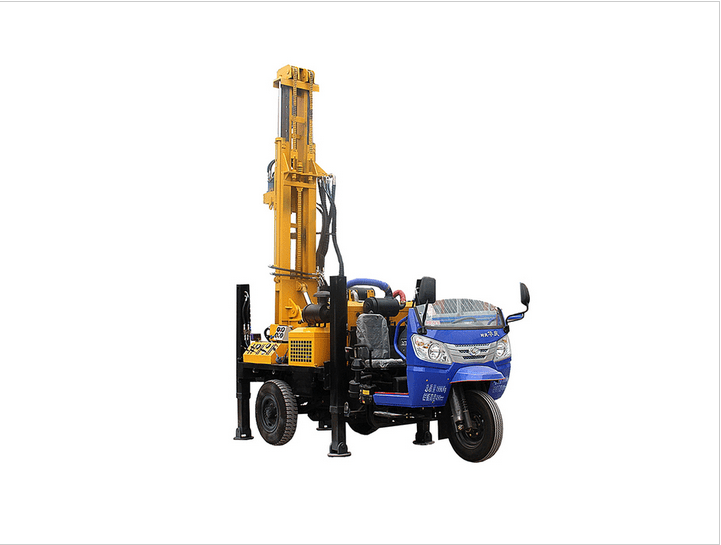

Discover our highly mobile vehicle-mounted water well drilling rig. Designed with a car-style chassis for easy transportation, this rig offers a convenient solution for accessing water sources in various locations. Ideal for quick deployment and efficient water exploration projects.
Technical Details
| Description | |||
|---|---|---|---|
| Model | |||
| Overall machine weight (T) | 4.7 (T) | ||
| Drill pipe diameter | Φ76 Φ89 (mm) | ||
| Drilling diameter | 140-254 (mm) | ||
| Drill pipe length | 1.5m 2.0m 3.0m (m) | ||
| Drilling depth | 200 (m) | ||
| Rig/ Lifting power | 13 (T) | ||
| One-time advancement length | 3.3 (m) | ||
| Rapid rise speed | 20 (m/min) | ||
| Walking speed | 20-40 (km/h) | ||
| Fast forward speed / feeding | 40 (m/min) | ||
| Climbing ability / angles | 30 (Max.) | ||
| Swing / Rotation speed | 45-65 (rpm) | ||
| Host power | (kw) | ||
| Hoisting /Equipped capacitor | 65 (T) | ||
| Hoisting force of winch | |||
| Working air pressure | 1.7-2.5 (MPA) | ||
| Swing / Rotary torque | 3400-4700 (N.m) | ||
| Air consumption | 17-31 (m³/min) | ||
| Dimensions | 4350×1600×2450 (mm) | ||
| Penetration / Footage efficiency | 10-35 (m/h) | ||
| High leg travel / stroke | 1.4 (m) | ||
| engine brand | Diesel | ||
| The engine brand | Quanchai engine |
