Description

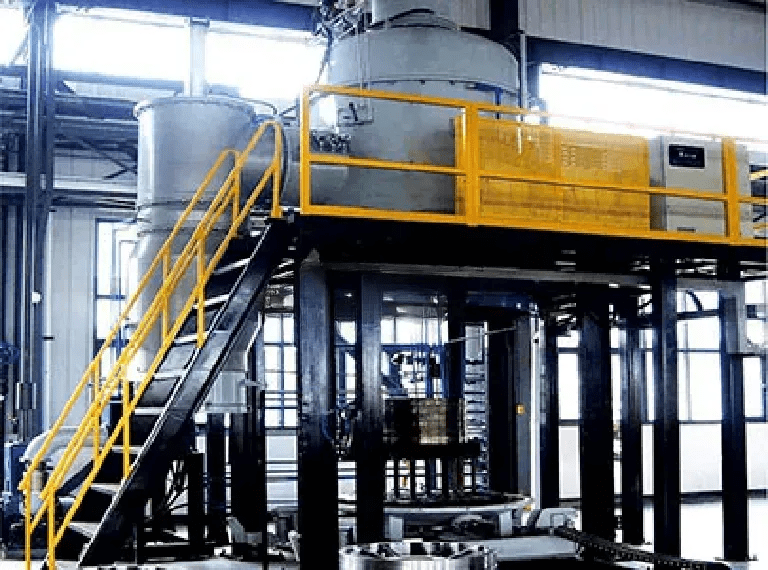

Our Vertical Bottom Loading Annealing Furnace is engineered for high-performance bright annealing of materials such as tool steel, die steel, high-speed steel, ultra-strength steel, magnetic alloys, stainless steel, and non-ferrous metals. This advanced furnace is especially suited for vacuum annealing of large and deformation-prone components, including long pole-shaped parts, shafts, and flat plates. Its vertical loading design ensures uniform heat treatment, minimal distortion, and precise thermal control — ideal for industries requiring high-quality metallurgical results.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-HTE-0608S | SMC-HTE-0808S | SMC-HTE-0810S |
| Effective hot zone size Φ×H (mm) | Φ600 × 800 | Φ800 × 1000 | Φ1000 × 1000 |
| Loading capacity(kg) | 650 | 850 | 1000 |
| Heating Power (kW) | 120 | 180 | 270 |
| Max.Temperature(°C) | 1150/1350 | 1150/1350 | 1150/1350 |
| 1700/2300 | 1700/2300 | 1700/2300 | |
| Temperature Uniformity (°C) | ±5 | ±5 | ±5 |
| Vacuum degree (Pa) | 4 × 10⁻¹ | 4 × 10⁻¹ | 4 × 10⁻¹ |
| 4× 10⁻³/6 × 10⁻⁴ | 4× 10⁻³/6 × 10⁻⁴ | 4× 10⁻³/6 × 10⁻⁴ | |
| Pressure Increase Rate (Pa/h) | ≤0.26 | ≤0.26 | ≤0.26 |
| ≤0.65 | ≤0.65 | ≤0.65 | |
| Gas cooling pressure (bar) | 2 | 2 | 2 |
