Description

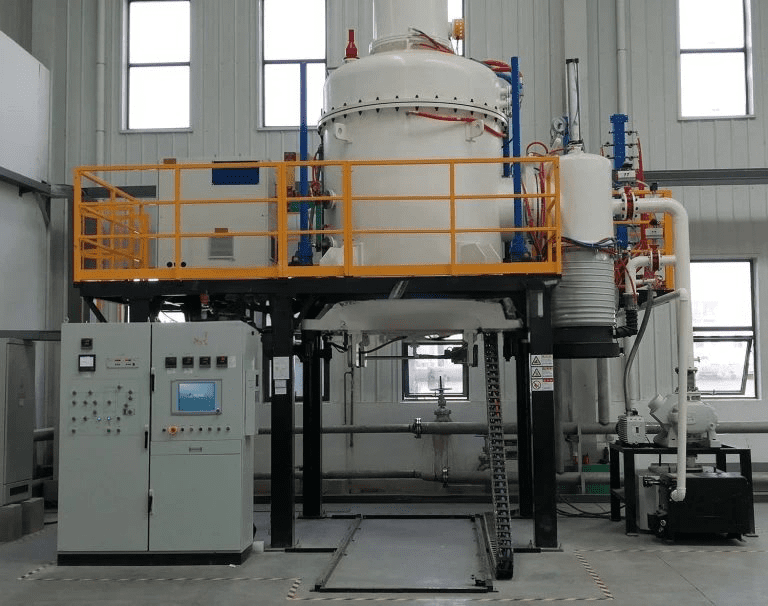

Vacuum bottom loading furnace is used for vacuum brazing of materials like non-ferrous metal, stainless steel, titanium alloy, high temperature alloy.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-HTE-0608S | SMC-HTE-0808S | SMC-HTE-1010S |
| Effective hot zone size D×H (mm) | Φ600×800 | Φ800×800 | Φ1000×1000 |
| Loading capacity (kg) | 650 | 850 | 1000 |
| Heating Power (kW) | 120 | 180 | 270 |
| Max. temperature (°C) | 1350/1700/2300 | 1350/1700/2300 | 1350/1700/2300 |
| Temperature Uniformity (°C) | ±5 | ±5 | ±5 |
| Vacuum degree (Pa) | 4×10⁻³/6×10⁻⁴ | 4×10⁻³/6×10⁻⁴ | 4×10⁻³/6×10⁻⁴ |
| Pressure Increasing Rate (Pa/h) | ≤0.26 | ≤0.26 | ≤0.26 |
| ≤0.65 | ≤0.65 | ≤0.65 | |
| Gas cooling pressure (bar) | 2/6/10 | 2/6/10 | 2/6/10 |
