Description

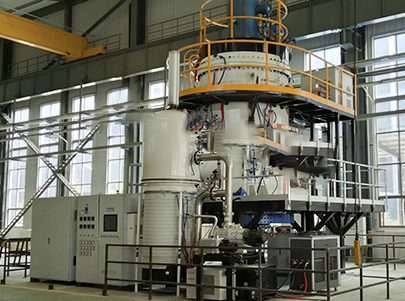

The Vacuum Gas Quenching Furnace is an advanced solution designed for the heat treatment of tool steels, die steels, high-speed steels, and super high-strength steels. Specifically engineered for large and easily deforming parts, this furnace excels at processing long rod-type components, axle parts, and plate-type products.
The vacuum gas quenching process ensures minimal deformation and high-quality outcomes, even for large and complex parts. The controlled environment within the furnace prevents oxidation and guarantees excellent mechanical properties in the final products, making it ideal for industries that require precision heat treatment for demanding materials.
Key Features:
Advanced Quenching Process: Utilizes vacuum gas quenching, which ensures uniform cooling and prevents oxidation for high-performance materials.
Suitable for Large Parts: Perfect for long rod-type, axle parts, and plate-type components that are prone to deformation during traditional quenching methods.
Minimal Deformation: The controlled vacuum environment results in little deformation and superior dimensional stability of the treated parts.
High-Quality Results: Provides excellent hardness, toughness, and mechanical properties for tool steel, die steel, high-speed steel, and super high-strength steel.
Applications:
Tool Steel Processing: Used for high-performance tool steels where precision and minimal distortion are critical.
Die Steel Heat Treatment: Ideal for die steel applications requiring high strength and durability.
Large Structural Components: Applied to large axle parts, long rods, and plates, ensuring minimal warping and improved performance.
This furnace is a key solution for industries that rely on precision heat treatment, offering a controlled environment that improves the mechanical properties of large, easily deforming products. The Vacuum Gas Quenching Furnace ensures your components achieve superior performance, stability, and durability.
Technical Details
| Description | |||
|---|---|---|---|
| Spec/Model | SMC-VVGQ-0608S | SMC-VVGQ-0808S | SMC-VVGQ-1010S |
| Effective hot zone size Φ ×H(mm) | Φ600 × 800 | Φ800 × 800 | Φ1000 × 1000 |
| Loading capacity (kg) | 650 | 850 | 1000 |
| Heating Power (kW) | 120 | 180 | 270 |
| Max.Temperature(°C) | 1150 | 1150 | 1150 |
| 1350 | 1350 | 1350 | |
| Temperature Uniformity (°C) | ±5 | ±5 | ±5 |
| Vacuum degree (Pa) | 4 × 10⁻¹ | 4 × 10⁻¹ | 4 × 10⁻¹ |
| 4 × 10⁻³/6 × 10⁻⁴ | 4 × 10⁻³/6 × 10⁻⁴ | 4 × 10⁻³/6 × 10⁻⁴ | |
| Pressure Increase Rate (Pa/h) | ≤0.26 | ≤0.26 | ≤0.26 |
| ≤0.65 | ≤0.65 | ≤0.65 | |
| Gas quenching pressure (bar) | 6/10/15/20/ 40/60 | 6/10/15/20/ 40/60 | 6/10/15/20/ 40/60 |
| Cooling gas (99.995%) | N2/Ar/He | N2/Ar/He | N2/Ar/He |
