Description

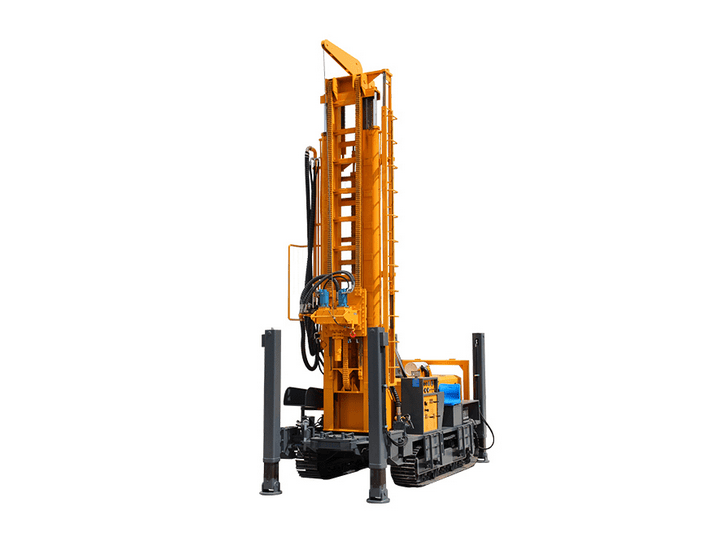

The Drilling Rig is engineered with a combination of high-quality components to deliver superior performance, longevity, and operational efficiency. Whether you’re working in construction, mining, or other heavy-duty applications, this rig is designed to excel in demanding conditions. The advanced systems, durable chassis, and powerful engine ensure consistent performance and low maintenance costs.
Key Features:
1. Engine:
Choice of Engines:
Guangxi Yuchai turbocharged engine (well-known and reliable).
American Cummins turbocharged engine (trusted for high performance and durability).
Powerful Performance: These engines are designed to provide optimal power and efficiency for the drilling rig, ensuring reliable operation across various environments.
2. Traveling Device:
Long Service Life: Equipped with a new traveling motor and reducer, which contribute to the durability and longevity of the traveling device.
Superior Efficiency: The traveling device is designed for minimal wear, providing smooth operation and efficient power transfer, essential for transporting the rig across uneven terrains.
3. Hydraulic Oil Pump:
Imported from Italy: The hydraulic oil pump is sourced from Italy, ensuring top-tier quality and performance.
Parallel Gearbox Design: This design optimizes the power distribution within the rig, allowing for better performance and increased efficiency.
Oil Pump Separation: Provides sufficient and reasonable power distribution, improving the overall functionality of the rig while reducing maintenance needs.
4. Power Head Device:
Dual Motors: The power head device is integrated into a single unit with dual motors that deliver greater power, greater torque, and higher durability.
Reduced Maintenance Costs: The integration of dual motors leads to enhanced performance, while also lowering maintenance costs due to the system’s robustness and longevity.
5. Drilling Rig Chassis:
Professional Drilling Rig Chassis: The chassis is designed to be classic and durable, ensuring that it can withstand the toughest work conditions.
Heavy-Bearing and Wide Chain Plate Width: This setup allows for better stability and handling, particularly on rough terrain.
Minimal Damage to Road Surfaces: The rig is built to minimize damage to hard road surfaces, ensuring it can operate smoothly without causing unnecessary wear.
Technical Details
| Description | |||
|---|---|---|---|
| MODEL | SMC-DTH-350 | ||
| Machine weight (T) | The weight 8.6 | ||
| Drill pipe diameter | (mm) Φ89 Φ102 | ||
| Drill pipe length | 1.5m 2.0m 3.0m 6.0m | ||
| Drilling depth | 350 Lifting force (T) | ||
| One-time advancement length | 6.6 Rapid rise speed (m/min) | ||
| Rapid rise speed | 18 | ||
| Walking speed | 2.5 Fast forward speed (m/min) (km/h) | ||
| Fast feeding speed | 33 | ||
| Climbing ability | (Max.) | ||
| Climbing angles | 30 | ||
| Loading width | (m) | ||
| Width of loading | 2.7 | ||
| Host power | (kw) | ||
| Equipped capacitor | 91 | ||
| hoisting capacity | (T) | ||
| Hoisting force of winch | 2 | ||
| Working air pressure | (MPA) | ||
| Using air pressure | 1.7-3.4 | ||
| Rotary torque | (N.m) | ||
| Swing torque | 6200-8500 | ||
| Air consumption | (m³/min) | ||
| Air consumption | 17-36 | ||
| Dimensions | (mm) | ||
| Dimension | 6000×2000×2550 | ||
| Rotation speed | (rpm) | ||
| Swing speed | 66-135 with impactor | ||
| Equipped with hammer | medium and high wind pressure series | ||
| Footage efficiency | (m/h) | ||
| The penetration efficiency | 15-35 High leg travel (m) | ||
| High leg stroke | 1.4 | ||
| Diesel engine brand | The engine brand Yuchai Power Engine |
