Description

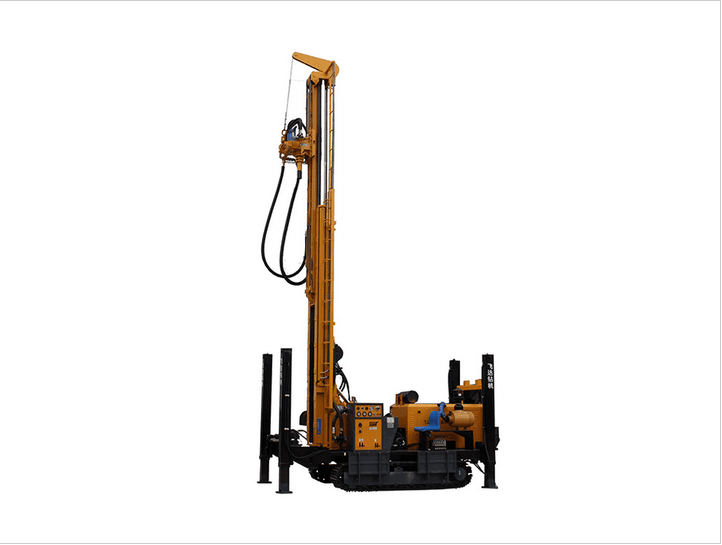

Explore our reliable well drilling rig, specifically designed for the efficient drilling of water wells. This equipment provides a dependable solution for accessing groundwater resources for various applications.
Technical Details
| Description | |||
|---|---|---|---|
| Model | |||
| Machine weight (T) | 11.5 (T) | ||
| Drill pipe diameter | Φ102 Φ108 Φ114 (mm) | ||
| Drilling diameter / hole | 140-350 (mm) | ||
| drill pipe length | 1.5m 2.0m 3.0m 6.0m (m) | ||
| Drilling depth | 500 (m) | ||
| Rig lifting force / power | 26 (T) | ||
| One-time advancement length | 6.6 (m) | ||
| Rapid rise speed | 20 (m/min) | ||
| Walking speed | 2.5 (km/h) | ||
| Fast forward / feeding speed | 25 (m/min) | ||
| Climbing ability / angles | 30 (Max.) | ||
| 0 Loading width | 2.85 (m) | ||
| Host power | (kw) | ||
| Equipped / Hoisting capacitor | 118 (T) | ||
| Hoisting force of winch | 2 | ||
| Working air pressure | 1.7-3.5 (MPA) | ||
| Swing / Rotary torque | 7500-10000 (N.m) | ||
| Air consumption | 17-42 (m³/min) | ||
| Dimensions (mm) | 6200×2200×2650 (mm) | ||
| Swing / Rotation speed | 40-13 (rpm) | ||
| Equipped with hammer | medium and high wind pressure series / Medium and high wind pressure series | ||
| Penetration / Footage efficiency | 15-35 (m/h) | ||
| High leg travel / stroke | 1.7 (m) | ||
| Engine brand | Diesel | ||
| The engine brand | Yuchai Engine |
