Description

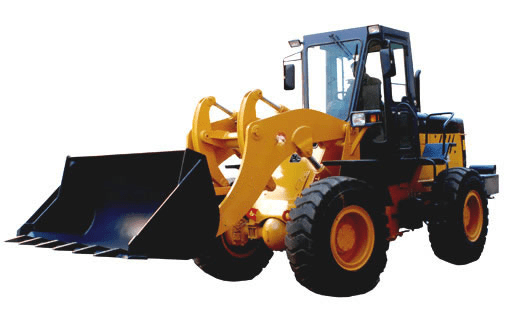

Wheel Loaders – Powerful, Reliable, and Built to Perform
Designed to meet diverse operational needs, this series of wheel loaders offers robust performance, high efficiency, and excellent value. Manufactured to ISO9001:2008 standards, each model is equipped with a high-quality engine to ensure reliable operation under tough working conditions.
From compact utility to heavy-duty loading, the range includes models SMC-CE-50F, SMC-CE-30F, SMC-CE-30-II—each engineered for strength, durability, and productivity. Whether you’re handling construction materials, agricultural goods, or industrial loads, these loaders deliver the power, control, and cost-effectiveness to get the job done efficiently.
Technical Details
| Description | |||
|---|---|---|---|
| Models | SMC-CE-50F | SMC-CE-30F | SMC-CE-30-II |
| Total weight | 16500kg | 10360kg | 9950kg |
| Bucket capacity | 3m³ | 1.7m³ | 1.7m³ |
| Rated load | 5000kg | 3000kg | 3000kg |
| Movable arm lifting time | ≤6.5s | ≤6.5s | ≤6.5s |
| Total lifting, loading and unloading, as well as lowering time | ≤11.5s | ≤12s | ≤12s |
| Min. turning radius | 6770mm | 5110mm | 5022mm |
| Forward Ⅰ~Ⅱgear | 11.5~38km/h | 7.7~33.6km/h | 6.5~36km/h |
| Reverse gear | 0~16km/h | 9.5~28km/h | 7.5~23km/h |
| Dumping clearance | 3200mm | 3200mm | 3050mm |
| Dumping reach | 1180mm | 970mm | 974mm |
| Overall dimension (L×W×H) | 7935×2956×3450mm | 7000×2425×3300mm | 7105×2400×3080mm |
| Engine model | WD10G220E21 | LR6B3-22 | LR6B3-22 |
| Engine rated power | 162kW | 92kW | 92kW |
| Fuel capacity | 270L | 140L | 150L |
