Description

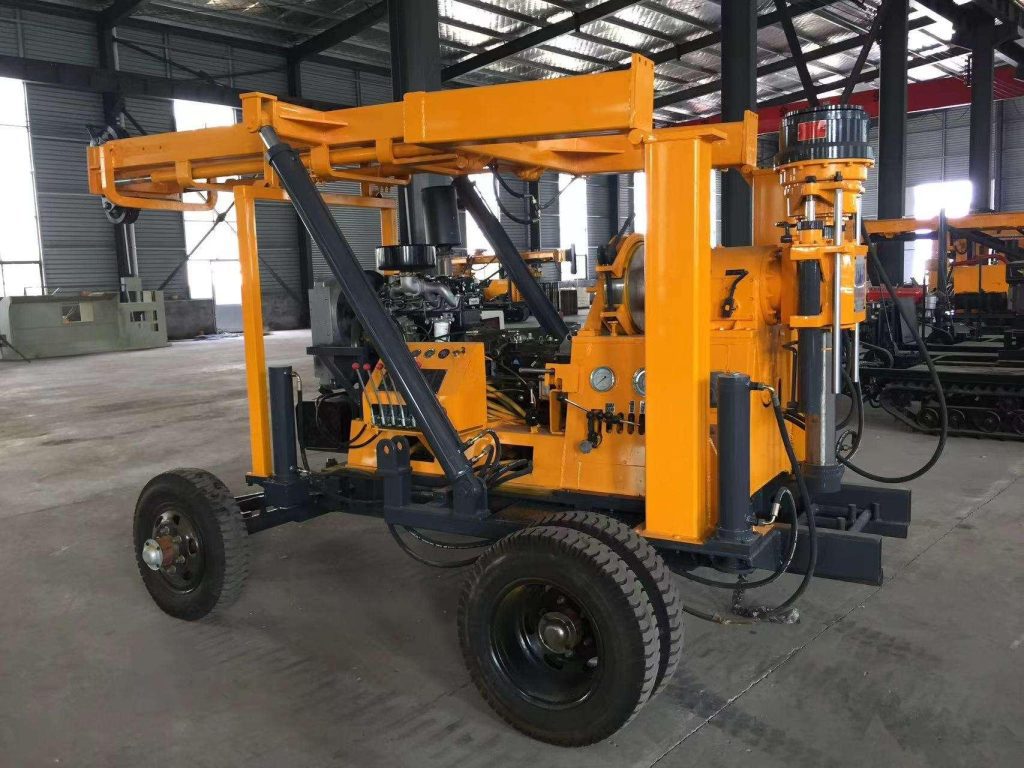

The SMC-DTH-WHEEL180 is a wheeled mobile geological exploration drilling rig designed for efficient, safe, and versatile drilling operations. Built on a rugged wheeled chassis, it offers excellent mobility and adaptability across diverse terrains—from plains to mountainous regions. This rig supports a wide range of drilling tasks including core sampling, SPT, hydrogeological surveys, and groundwater exploration.
Equipped with a full hydraulic system and advanced vertical axis drive, it ensures high-speed and stable drilling performance. The adjustable drilling parameters allow operators to adapt operations to complex geological conditions. Safety features, an intuitive control panel, and low maintenance needs make the SMC-DTH-WHEEL180 a reliable asset for professional drilling crews across construction, mining, and environmental sectors.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-DTH-WHEEL180 | ||
| Drilling Depth | 180 m | ||
| Drilling Diameter | 220 mm | ||
| Final Hole Diameter | 75 mm | ||
| Drill Rod Diameter | 42–60 mm | ||
| Drilling Angle | 75°–90° | ||
| Engine Power | 13.2 kW | ||
| Rig Dimensions (L×W×H) | 3800 × 1950 × 2700 mm | ||
| Weight | 3400 kg | ||
| Track/Chassis Type | Wheeled (with outriggers) | ||
| Climbing Angle | 20° | ||
| Travel Speed | 10 km/h | ||
| Vertical Axis Speed | 130–1045 r/min | ||
| Vertical Axis Travel | 450 mm | ||
| Hydraulic Outrigger Height | 1300 mm | ||
| Rated Load Capacity | 2 ton | ||
| Drilling Tower Height | 6 m | ||
| Drilling Tower Structure | Full Hydraulic | ||
| Pump Flow Rate | 160 L/min | ||
| Pump Pressure | 1.3 MPa | ||
| Number of Round Trips | 165 times/min | ||
| Mud Straw Diameter | 51 mm | ||
| Max Water Output Diameter | 32 mm |
