Description

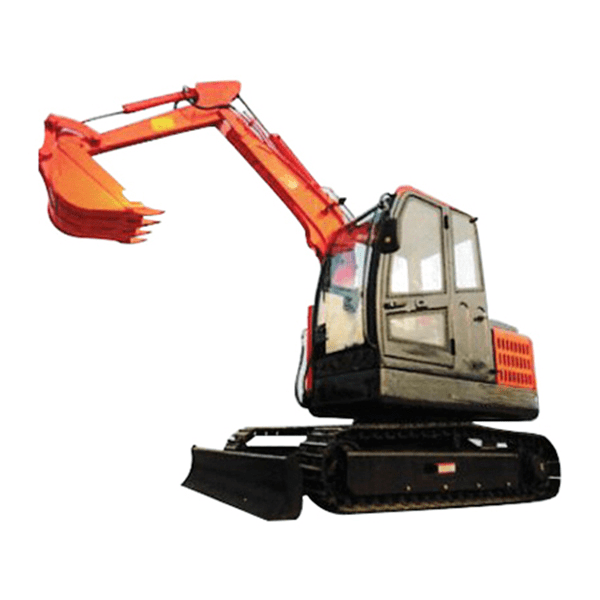

The SMC-40B mini crawler excavator is a beautifully designed piece of machinery configured for superior performance with low fuel consumption and a wide scope of application. Utilize the excavator’s quick hitch to add attachment tools like augers, hydraulic hammers, loading buckets, grippers, and more. The simple design of the machine helps to minimize maintenance and operation costs. It reduces the amount of time of relatively small digging jobs and one operator can do the job of several manual workers in significantly less time, offering a high return on investment.
Technical Details
| Description | |||
|---|---|---|---|
| Model | SMC-CE-40B | ||
| Engine model | 4TNV88-B | ||
| Engine brand | YANMAR | ||
| Type | 4 Cylinder,4 Strokes Water Cooled Diesel Engine With Euro-Ⅲ-A | ||
| Rated Power | 25.2KW at 2200 rpm | ||
| Displacement Volume | 2.19 Liters | ||
| Torque | 112N-m/2200rpm | ||
| Operating pressure | 22mpa | ||
| Walking motor | Two speed plunger | ||
| Rotary motor | Variable plunger | ||
| Main pump | 32cc Plunger | ||
| Flow | 99/min | ||
| Overall weight | 3680kg | ||
| Maximum dumping height | 3300mm | ||
| Maximum digging radius | 4730mm | ||
| Maximum digging depth | 2950mm | ||
| Maximum digging height | 4730mm | ||
| Maximum digging distance | 4630mm | ||
| Maximum radius of gyration | 1820mm | ||
| Maximum turning radius | 650-718mm | ||
| Maximum lifting height of earth shovel | 359mm | ||
| Maximum digging depth of dozer | 268mm | ||
| Tail swing radius | 1170mm | ||
| The maximum digging force of bucket | 24KN | ||
| Bucket capacity | 0.10m3 | ||
| Ground specific pressure | 0.477kg/cm2 | ||
| Gradeability | 30 degree | ||
| Traction | 12.5KN | ||
| Rotary speed | 10RPM | ||
| Max. walking speed | 5.55km/h | ||
| Maximum digging force | 55.6KN | ||
| Rail contact pressure on ground | 34.8kpa | ||
| Brake system | Hydraulic lock system | ||
| Swing method | Hydraulic motor driven | ||
| Swing motor | Axial piston type | ||
| Drive method | Hydrostatic | ||
| Number of track roller | 54 pcs.in each side | ||
| Number of rubber shoes | 46 pcs.in each side | ||
| Total length | 4750mm | ||
| Total width | 2000mm | ||
| Total height | 2260mm | ||
| Standard bucket capacity | 0.25m3 | ||
| Shoe width | 350mm | ||
| Track length | 2175mm | ||
| Track gauge | 1703mm | ||
| Platform ground clearance | 557mm | ||
| Boom length | 2350mm | ||
| Fuel tank capacity | 60 Liters | ||
| Hydraulic oil tank capacity | 75 Liters | ||
| Engine oil tank capacity | 5 Liters |
